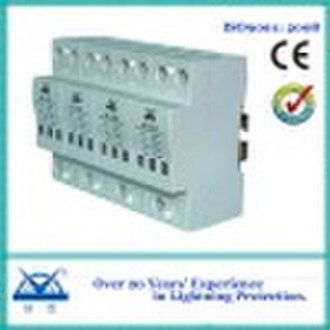

CE Certified Power Modular Surge Protector

Parameters Order number : 100302001 Standards IEC61643-1 and GB18802.1-2002 Certificate CE Shell Material Iron Color Gray Weight 0.9KG Dimensions 144X90X66 Housing material PBT/PA-F Inflammability class UL94-V0 Degree of protection IP20 Mounting type DIN rail 35mm Relative Humidity <95% Damage status Presenting Breaking Status Number of terminals 4 PIN Ambient temperature (operation) -25 +70°C Protection Mode L--PE N—PE Lightning Protection Level A Grade SPD Type one port Suitable Power Supply TT,TN,IT Rated Working Voltage 380V AC Maximum Continuous Working Voltage 420V AC Action voltage ≥800V DC Rated Working Frequency 50Hz (60Hz) Leakage Currents ≤10μA Nominal Discharging Currents (10/350) μs 25kA Maximum Discharging Currents (10/350) μs 50kA Nominal Discharging Currents (10/350) μs ≤3.0kV Respond Time <100nS Connection, Protective Circuit Parameters L(N) type of Connection Screw Terminal Blocks Screw Thread M5 Conductor Cross Section Stranded Min. BVR—10mm2 Conductor Cross Section Stranded Max. BVR—25mm2 PE type of Connection Screw Terminal Blocks Screw Thread M5 Conductor Cross Section Stranded Min. BVR—10mm2 Conductor Cross Section Stranded Max. BVR—25mm2 Product Introduction: Modular design, easy installation and wiring. Using temperature control circuit technology, built-in over current protection circuit to avoid fire. It is suitable for first class power source lightning surge protection. It is applicable to TT,TN power supply system. DK---a famous brand in lightning protection industry in China.
